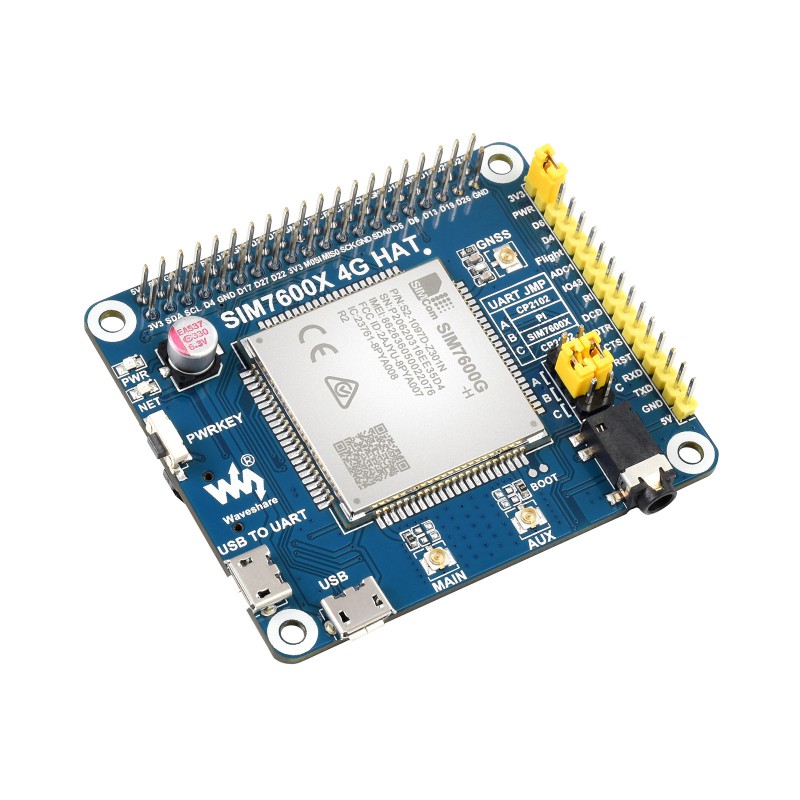

SIM7600G-H 4G HAT For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band With Antenna and USB TypeC Cable

( 0 Ratings )
THB 3,499.00
หมวดหมู่สินค้า: Raspberry Pi Accessories
รหัสสินค้า: 4G module

ขออภัยสินค้าหมด

จำนวน

ราคาทั้งหมด

THB 3,499.00
" ราคาสินค้ารวมภาษีมูลค่าเพิ่มแล้ว "

รายละเอียด

4G HAT FOR RASPBERRY PI

Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning

Based on SIM7600G-H, Global Band

โมดูล ใส่ซิม รองรับการเชื่อมต่อ internet ผ่าน ซิม ใช้ได้ทั้ง 2G/3G/4G  และรองรับ ระบบ GPS ระบุตำแหน่ง
มาพร้อม 40 pin GPIO  รองรับการโทร และรับ-ส่ง SMS ผ่าน AT-Commands
รองรับการรับส่งข้อมูลด้วย protocol มากมายเช่น TCP/UDP/FTP/FTPS/HTTP/HTTPS
รองรับทั้ง Windows และ Linux
LTE Cat-4: Up To 50Mbps (Uplink) / Up To 150Mbps (Downlink) *
3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink) *

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.





Features At A Glance

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Onboard CP2102 USB to UART converter, for serial debugging
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • SIM card slot, supports 1.8V/3V SIM card
  • TF card slot for storing data like files, messages, etc.
  • Onboard audio jack and audio decoder for making telephone call
  • 2x LED indicators, easy to monitor the operating status
  • Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
  • Baudrate: 300bps ~ 4Mbps (default: 115200bps)
  • Autobauding baudrate: 9600bps ~ 115200bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

FREQUENCY BAND
LTE Cat-4 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
LTE-TDD: B34/B38/B39/B40/B41
3G UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G GSM/GPRS/EDGE: 850/900/1800/1900 MHz
GNSS
Satellite systems GPS/Beidou/GLONASS/GALILEO/QZSS
Receiver type 16-channel
C/A Code
Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air) Cold starts: <35s
Hot starts: <1s
SMS AND AUDIO
SMS Supported types: MT, MO, CB, Text, PDU
Storage: USIM card and ME (default)
Audio feature Supports echo cancellation
Supports noise reduction
OTHER
Power supply 5V
Operating voltage 5V / 3.3V (configured via jumper)
Operating temperature -30°C ~ 80°C
Storage temperature -45°C ~ 90°C
Dimensions 56.21mm × 65.15mm

Standard Raspberry Pi 40PIN GPIO

Compatible With Raspberry Pi Series Boards, Jetson Nano

Global Band 4G / 3G / 2G Support

Dial-Up On Windows/Linux

LTE Cat-4: Up To 50Mbps (Uplink) / Up To 150Mbps (Downlink) *
3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink) *

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Cloud Communication

Supports Communication Protocols Including TCP/UDP/FTP/FTPS/HTTP/HTTPS

GNSS Positioning

Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS Base Station Positioning

Telephone Call & SMS Support

Making Telephone Call Or Sending SMS By AT Commands, With Onboard Audio Jack

What's On Board

  1. SIM7600G-H
  2. CP2102 USB to UART converter
  3. NAU8810 audio decoder
  4. TXS0108EPWR voltage translator
    translates 3.3V/5V into 1.8V
  5. MP2128DT power chip
  6. SPX29302 power chip
  7. Raspberry Pi GPIO header
  8. SIM7600 control interface
    for connecting with host boards like Arduino/STM32
  9. SIM card slot
    supports 1.8V/3V SIM card
  10. TF card slot
    allows data storage like files, messages, etc.
  11. 3.5mm earphone/mic jack
  12. USB interface
    for testing AT Commands, getting GPS positioning data, etc.
  13. USB to UART interface
    for serial debugging, or login to Raspberry Pi



  1. MAIN antenna connector
  2. AUX antenna connector
  3. GNSS antenna connector
  4. Power switch
  5. Network status indicator
  6. Power indicator
  7. Operating voltage selection jumper
    configured via 0Ω resistor jumper
    VCCIO - 3.3V: set operating voltage as 3.3V
    VCCIO - 5V: set operating voltage as 5V
  8. UART selection jumper
    A: access Raspberry Pi via USB to UART
    B: control the SIM7600 by Raspberry Pi
    C: control the SIM7600 via USB to UART
  9. PWR configuration jumper
    PWR - 3V3: auto startup on power-up (default)
    PWR - D6: startup/shutdown by the Raspberry Pi D6 pin
    Flight mode configuration jumper
    NC by default, no flight mode control pin
    Flight - D4: flight mode is controlled by the Raspberry Pi D4 pin
  10. USB connector solder pads
  11. BOOT forced programming solder pads

Pinout Definition

Outline Dimensions
